Low Temperature Rubber Steam Hose Manufacturers: HIC Universal

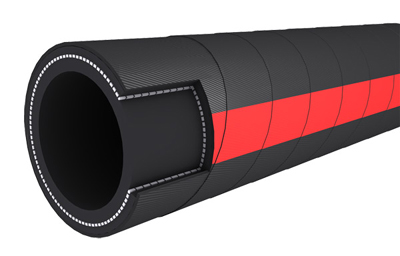

Rubber Hose Steam Low Temperature HIC Universal

Low Temperature Rubber Steam hose pipe manufactured in blended synthetic SBR and EPDM rubber tube reinforced with high tensile & heat resistant synthetic textile fabric plies or textile cord used as steam cleaner hose as well as nonconductive steam hose with copper wire embedded for saturated steam delivery up to 150°C / 302°F for medium pressure cleaning with steam in refineries, chemical plants, shipyards, petrochemicals for industrial steam pump application supplied exceeding IS 10655 T1, BS 5122 standards produced by HIC Universal India exporters of steam rubber hoses to Azerbaijan, Egypt, UK, Tanzania, USA, Bangladesh, Taiwan, Italy, Hong Kong, Singapore, Indonesia, Myanmar, Croatia, France, Thailand, Netherlands, Turkey, Romania, Sri Lanka, Canada, Australia, Chile, Uruguay, Saudi Arabia.

Steam Rubber Hose 5 bar as per IS10655Type1 TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
19 x 32OD,
(6” Min. Bend radius)
25x 40OD,
(10” Min. Bend radius)
32 x 48OD,
(13” Min. Bend radius)
38 x 54OD,
(15” Min. Bend radius)
51 x 65OD,
(20” Min. Bend radius)
63.5 x 83OD,
(25” Min. Bend radius)
76 x 96OD,
(29” Min. Bend radius)

Till 3”
5

(= 70 psi)
Test Pressure 5 : 1

Blended synthetic SBR and EPDM rubber tube, Resistant to heat & cleaning agents SBR Synthetic rubber, Heat & oil resistant ; Plain Wrap
BLACK color
High tensile & heat resistant synthetic textile fabric plies Or textile cord

Optional: Copper wire embedded and outer fiberglass cover for nonconductive service
50

- 30ºC to + 150ºC(302°F)

Safety Factor
10 : 1

* Roll Lengths manufactured are 20 meters Max (= 65 feet Approx.) of Mandrel built woven ply hoses and Max Length 60 meters produced in each size of Braided hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** End Fittings like Quick Release Double Check Valve Couplings in CS or SS304 material and any other customized end connections duly fitted with hose pipe also supplied.

**** Hose Reel also supplied.
