Potable Water Suction Delivery Rubber Hose Pipe Manufacturers: HIC Universal

Rubber Hose Potable Water Suction Neoprene HIC Universal

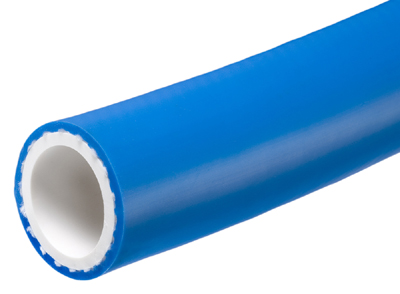

Potable Water Suction Delivery rubber hose pipe manufactured in White Neoprene synthetic rubber Food grade as per FDA tube multi-layer textile reinforcement and embedded steel helix wire used as potable water hose for physiological safe refilling of fresh water to boats, ships, camping indoor outdoor marine, recreational vehicles for drinking water and saline water application supplied exceeding ASTM D380, ASTM C1166 specifications produced by HIC Universal India exporters of potable water suction hoses to USA, Netherlands, Sri Lanka, Bangladesh, Germany, France, South Africa, Algeria, South Korea, Japan, France, Italy, UAE, Morocco, England UK, Slovak Rep., Indonesia, Singapore, Nigeria, Vietnam, Argentina, Peru, Australia, New Zealand.

Potable Water Suction Hose 10 bar as per ASTM D380 TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
15 x 26 OD (70mm Min. Bend radius)

19 x 31 OD (80mm Min. Bend radius)

22 x 35 OD (90mm Min. Bend radius)

28 x 40 OD (100mm Min. Bend radius)

35 x 49 OD (140mm Min. Bend radius)

38 x 56 OD (160mm Min. Bend radius)

Till 1-1/2
10

(= 150 psi)
Test Pressure 1.5 : 1
Synthetic Neoprene White Food Grade Quality rubber, water & abrasion resistant

Hardness: 65 ±5 shore; T.S. (Av.): 12 MPa;
Neoprene Synthetic rubber, Flame retardant, seawater, ozone, fuel & abrasion resistant ; Cloth Wrapped
BLUE/ ORANGE/ WHITE color
Heavy Duty Multi-layer tensile textile & embedded steel helix wire 30

- 5ºC to + 65ºC Vacuum: 95 kPa

Safety Factor
3 : 1

* Roll Lengths manufactured are 03 meters Min. (= 9 feet Approx.) and Max Length of mandrel built suction delivery hoses produced in each size is 20m.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** Crimped Couplings such as Camlock / Quick Disconnect / Built-in Flanges both sides vulcanized with or without flange rubber lining as per Class ASA 150 or BS10 Table D/E also supplied.
