High Pressure Steam EPDM Rubber Hose Manufacturers: HIC Universal

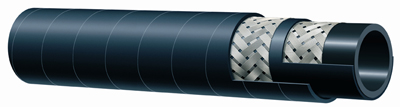

Rubber Hose EPDM High Pressure Steam HIC Universal

High Pressure and High Temperature Steam rubber hose pipe manufactured in EPDM rubber tube reinforced with Single wire R7-1 and R7-2 Double wire braided of high tensile steel used as flexible rubber steam hose for saturated steam delivery up to 180°C / 356°F (1 wire HTS) and up to 210°C / 410°F (2 wire braid) for high pressure pumping & heat control in large exhaust steam and vapor mains in sugar factories, steam flow driven water in thermal power stations, high temperature fluids in petrochemical refineries, offshore pile driving, military vehicles fuel and oil lines for closed steam systems application supplied exceeding IS 10655, BS 5342 produced by HIC Universal India exporters of high temperature steam hoses to USA, Kenya, Italy, South Africa, Hawaii, Algeria, Morocco, Indonesia, Mauritius, Australia, Malaysia, Slovak Republic, Mozambique, Poland, Argentina, Swaziland, Tanzania, Sweden, UK, Louisiana, Thailand, Zimbabwe.

High Pressure Steam Hose 10 bar One Wire and 17 bar Two Wire Braid as per IS10655 TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
8 x 17OD R7-1wire,
8 x 19OD R7-2wire,
(4.5” Min. Bend radius)
9.5 x 20OD R7-1wire,
9.5 x 22OD R7-2wire,
(5” Min. Bend radius)
12.5x 25OD R7-1wire,
12.5 x 27OD R7-2wire,
(7” Min. Bend radius)
16 x 28OD R7-1wire,
16 x 30OD R7-2wire,
(8” Min. Bend radius)
19 x 31.5OD R7-1wire,
19 x 34OD R7-2wire,
(9.5” Min. Bend radius)
25 x 38OD R7-1wire,
25 x 40OD R7-2wire,
(15” Min. Bend radius)
32 x 47OD R7-1wire,
32 x 50OD R7-2wire,
(17” Min. Bend radius)
38 x 54OD R7-1wire,
38 x 57OD R7-2wire,
(20” Min. Bend radius)

Till 1-1/2
10 (1 wire braid)
(=150 psi)

17 (2 wire braid)
(=240 psi)

Test Pressure 5 : 1

EPDM synthetic rubber seamless tube, Resistant to heat, high temperature fluids & steam SBR Synthetic rubber, Heat, oil & abrasion resistant ; Plain Wrap
BLACK color
High tensile steel wire; 1 braid HTS or 2 braid of HTS wire (electrically conductive) 100 (R7-1)
- 30ºC to +180ºC (356°F)

170 (R7-2)
- 30ºC to + 210ºC(410°F)

Safety Factor
10 : 1

* Roll Lengths manufactured are 15 meters Min. (= 49 feet Approx.) and Max Length 100 meters produced in each size of wire braided hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** End Fittings like BSP / Metric / Unified Threaded in MS material, Quick Release Double Check Valve Couplings in CS or SS304 material and any other customized end connections duly fitted with hose pipe also supplied.

**** Hose Reel also supplied.
