Concrete Pump Rubber Hose Manufacturers: HIC Universal

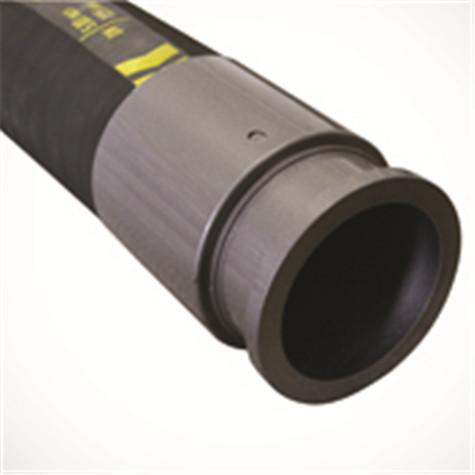

Rubber Hose Concrete Pump HIC Universal

Concrete Pump rubber hose pipe manufactured in synthetic SBR rubber tube reinforced with high tensile multiple plies of polyester tire cord fabric used as heavy duty concrete pumping hose for high pressure pumping of concrete, plaster or grout mixture in road construction works, infrastructure industries, high rise building constructions, flyover construction equipment for handling abrasive slurries & pumping concrete in Putzmeister, Schwing Stetter concrete pump machine sprayer application supplied as per HIC’s standards produced by HIC Universal India exporters of concrete pump hoses to Mexico, China, America, Singapore, UK, Malaysia, South Africa, South Korea, Congo, Algeria, Germany, Czech Rep., Romania, Poland, Indonesia, Hungary, Nepal, Japan.

Concrete Pump Hose 85 bar TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
63 (2-1/2”)
75 (3”)
127 (5”)


Till 5”
85
(=1200 psi)

Test Pressure 1.5 : 1

High Tensile Natural & Synthetic SBR rubber blended ; resistant to water, abrasion & harsh conditions EPDM and SBR Synthetic rubber blended, Weather & wear resistant to abrasive slurry ; Highly Flexible, Plain Wrap
BLACK color
4 plies polyester tire cord fabric 170

- 25ºC to + 70ºC

Safety Factor
2 : 1

* Roll Lengths manufactured are 3 meters Min. (= 10 feet Approx.) and Max Length 10 meters produced in each size of Mandrel built woven ply hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** End Fittings like Crimped / Clamped Flanges as per Class ASA150, BS 10 Table D/E in MS or SS304 material or Victaulic Couplings and any other customized end connections duly fitted with hose pipe also supplied.
