Slurry Suction Rubber Hose Pipe Manufacturers: HIC Universal

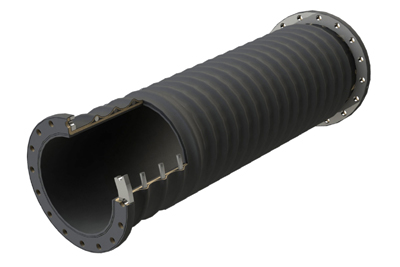

Rubber Hose Slurry Suction HIC Universal

Slurry Suction rubber hose pipe Corrugated or Plain cover manufactured in high abrasion resistant RMA rubber tube reinforced with rubberised high tensile multiple synthetic textile plies and steel wire helix used as cyclone feed pump hose for heavy duty suction service of abrasive slurries in mineral processing, animal manure recycling, sand mining, coal mine slag, gold ore mine clay slurry, lime mining slurry pumps for material pumping system & tanker slurry application supplied as per HIC’s own standards produced by HIC Universal India exporters of slurry tanker pump hoses to Ireland, China, Australia, Russia, South Africa, Malaysia, Italy, Germany, Canada, Indonesia, Argentina, Ghana, Mexico, Kazakhstan, Mali, Philippines, Tanzania, Uzbekistan, Chile, Peru, UK, Colombia, USA.

Slurry Suction Pump Hose 10/ 15 bar TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
51, 63.5, 76, 102, 127, 152, 203
(Min. Bend radius = 8 times of hose dia)

Till 8”
10

(= 150 psi)
Test Pressure 1.5 : 1

Vacuum: 900mm Hg
RMA rubber Smooth bore Red or Black color; extreme abrasion resistant

Lining Thickness (mm) 6/ 9/ 12
SBR Synthetic rubber, UV & abrasion resistant ; Corrugated or Plain Wrap
BLACK color
Rubberised high tensile multiple synthetic textile plies with steel wire helix & further rubber layer 30

- 20ºC to + 70ºC

Safety Factor
3 : 1

* Roll Lengths manufactured are 3 meters Min. (= 10 feet Approx.) and Max Length 20 meters produced in each size of Mandrel built woven ply hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** End Fittings like Crimped / Clamped Flange drilling as per Class ANSI B16.5, ASA150, BS 10 Table D/E in MS material Rubber Lined or without lining flanges or SS304 material and any other customized end connections duly fitted with hose pipe also supplied.

**** Working Pressure 7 bar, 15 bar rating and till 12” NB sizes also produced.
