Bulker Unloading Fly Ash Rubber Hose Manufacturers: HIC Universal

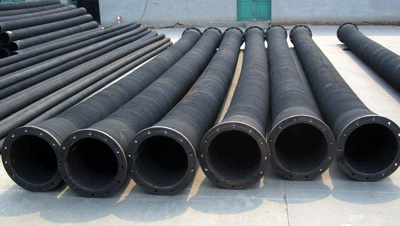

Rubber Hose Bulker Unloading Fly Ash HIC Universal

Bulker Unloading Fly Ash rubber hose pipe manufactured in blended RMA Gum and synthetic SBR rubber tube reinforced with high tensile multiple plies of synthetic cord fabric with a helical steel wire used as heavy duty abrasion resistant suction hose for cement discharge fly ash dry bulk unloading in coal fired thermal power plants, cement making factories for abrasive material handling ash disposal application supplied as per HIC’s standards produced by HIC Universal India exporters of fly ash hoses to Australia, Mongolia, Argentina, USA, Canada, UK, China, Sri Lanka, France, Netherlands, Germany, Denmark, Italy, Japan, Myanmar, Indonesia.

Fly Ash Abrasive Handling Hose 10 bar TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
75 (3”)
102 (4”)
127 (5”)
152 (6”)
203 (8”)

Till 8”
10
(=150 psi)

Test Pressure 1.5 : 1

Vacuum: 750mm Hg
Gum RMA and Synthetic SBR anti-abrasive rubber blended; high abrasion resistant SBR Synthetic rubber, Weather & abrasion resistant ; Plain Wrap
BLACK color
Multiple plies of synthetic cord fabric with a helical steel wire & a static wire as a path to conduct a static electrical charge to ground 30

- 30ºC to + 110ºC

Safety Factor
3 : 1

* Roll Lengths manufactured are 3 meters Min. (= 10 feet Approx.) and Max Length 10 meters produced in each size of Mandrel built woven ply hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** End Fittings like Crimped / Clamped Flanges as per Class ASA150, BS 10 Table D/E in MS or SS304 material or Camlock Couplings and any other customized end connections duly fitted with hose pipe also supplied.

**** Working Pressure 15 bar rating and till 14” NB sizes also produced.
