Carbon Free Rubber Hose Pipe Manufacturers: HIC Universal

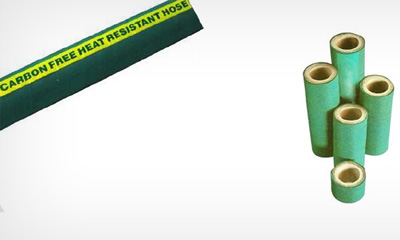

Rubber Hose Carbon Free HIC Universal

Carbon Free rubber hose pipe manufactured in synthetic SBR rubber tube reinforced with rubberised textile fabric plies or high tenacity synthetic yarn used as furnace door coolant hose with asbestos covered / without outer asbestos covering for electrical cable coolant with low leakage current (less than 20 Micro Amp. at 6 KV D.C. and minimum resistance of one Megaohm per inch at 1000 volts DC.) in ferroalloys plants, steel mills, glass works, foundries for industrial cooling system application supplied as per HIC’s own standards produced by HIC Universal India exporters of nonconductive furnace hoses to Luxembourg, South Korea, China, Japan, Kazakhstan, Brazil, Russia, Indonesia, Belgium, Malaysia, USA, Italy, Taiwan, Iran, Germany, Congo, Zambia, Mozambique, South Africa, Australia, Venezuela, Mali, Ghana.

Carbon Free Heat Resistant Hose 10 bar TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
10, 12.5, 19, 25, 32, 38, 45, 50, 63, 70, 75, 80, 90, 100

Till 4"
10

(= 150 psi)
Test Pressure 2 : 1
Synthetic SBR rubber Grey or Black color, heat & abrasion resistant Synthetic Nitrile rubber, Weather & abrasion resistant ; Cloth Wrapped
GREEN / RED color
Multiple textile plies 40

- 30ºC to + 100ºC

Safety Factor
4 : 1

* Roll Lengths manufactured are 10 meters Min. (= 32 feet Approx.) and Max Length 20 meters produced in each size of Mandrel built woven ply hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** Asbestos Cover externally also provided that can withstand hot metal splashes temperature > +250° C up to +460° C.
