Mine Water Suction & Delivery Rubber Hose Manufacturers: HIC Universal

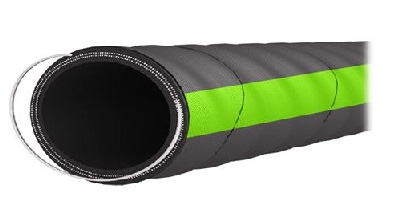

Rubber Hose Mine Water Suction Delivery HIC Universal

Mine Water Suction & Delivery rubber hose pipe manufactured in synthetic SBR rubber tube reinforced with high tensile synthetic textile fabric plies used as heavy duty dewatering hose for DE flooding and sump & utility pumps in quarries, construction, port machinery, forestry, irrigation, earthmoving for excavation of mines & gravity flow of water application supplied exceeding IS 3549 standards produced by HIC Universal India exporters of armoured water suction utility hoses to Australia, UK, Brazil, China, USA, Ghana, Chile, Tanzania, Russia, South Africa, Canada, Republic of Congo, Peru, Colombia, UK, Dominican Republic, Argentina, Mozambique, Namibia, Algeria.

Water Suction & Discharge Hose Mine Duty 10/ 15 bar as per IS3549 Type2 TECHNICAL SPECIFICATIONS: HIC

ID = NB size range (mm)Working Pressure (bar)Rubber Tube (lining)Cover & FinishReinforcementBurst Pressure (bar) & Temperature
19 x 29OD,
25x 35OD,
32 x 42OD,
38.5 x 48OD,
51 x 61OD,
(5” Min. Bend radius)
63.5x 76OD,
(6” Min. Bend radius)
76 x 88OD,
(8” Min. Bend radius)
102 x 116OD,
(10” Min. Bend radius)
127 x 141OD,
(11” Min. Bend radius)
152 x 166OD,
(12” Min. Bend radius)
203 x 223OD

Till 8”
10

(= 150 psi)
Test Pressure 1.5 : 1

Vacuum: 750mm Hg
Synthetic SBR rubber Smooth bore, water & abrasion resistant SBR / EPDM Synthetic rubber, Weather & ozone resistant ; Plain Wrap
BLACK color
High Tensile synthetic textile fabric plies and double steel wire helix 30

- 30ºC to + 80ºC

Safety Factor
3 : 1

* Roll Lengths manufactured are 3 meters Min. (= 10 feet Approx.) and Max Length 20 meters produced in each size of Mandrel built woven ply hoses.

** Packaging in coils wrapped in HDPE or Jute cloth straight stuffed from factory into direct truck/ trailer.

*** End Fittings like Crimped / Clamped Flanges as per Class ASA150, BS 10 Table D/E in MS or SS304 material or Camlock Couplings and any other customized end connections duly fitted with hose pipe also supplied.

**** Working Pressure 7 bar rating and till 14” NB sizes also produced.
